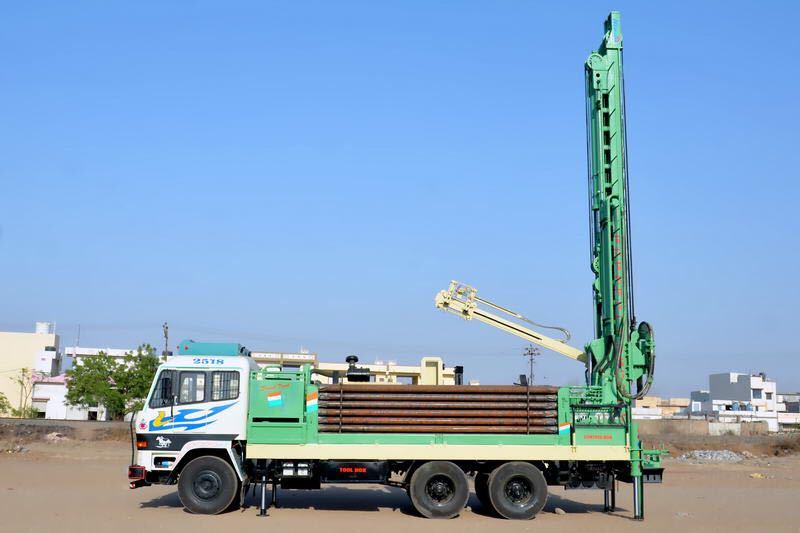

DTH Water Well Drilling Rig

DTH Water Well Drilling Rig
Send Inquiry
Product Code : 13
Brand Name : KIRAN MANUFACTURES
Product Description

DTH 300-Model, Top drive drill rig is capable of drilling in different formations, such as a medium to hard rock by DTH unconsolidated / Alluvial formations using Air / Water / Water flush by rotary method, up to a depth of 300 Mtr(1000 Feet), under favorable drilling conditions,

The following are the detailed specifications DTH Drilling Rig Machines.


Hole Diameter - 4.5''  To  8" Dia

Maximum Drilling Depth - 300Mtr (1000Feet)

Over Burden Diameter - 9.0" (228MM)


*Feed System -

Feed and Hoist operation will be achived by pully, wire rope and one double acting hydraulic cylinder.

Feed cylinder size - 125mm Dia x 80mm Dia x 2350mm Strock

Pull Back - 14000 Kgf

Pull Down - 6000 Kgf

Hoisting speed - 45Mtr / Minute

Reeving Ratio - 1:3


Trade Information
  • FOB Port
  • MUNDRA
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • Delivery Time
  • 20 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • ONLY UNIT
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • COMPANY CERTIFICATE
